Case Study 1: Gold



Gauteng

The landscape that is produced from the extracted material that (for now) has no further use, is scattered with waste sites in the vicinity of extraction locations, that range from overburden heaps to tailings.


Carletonville

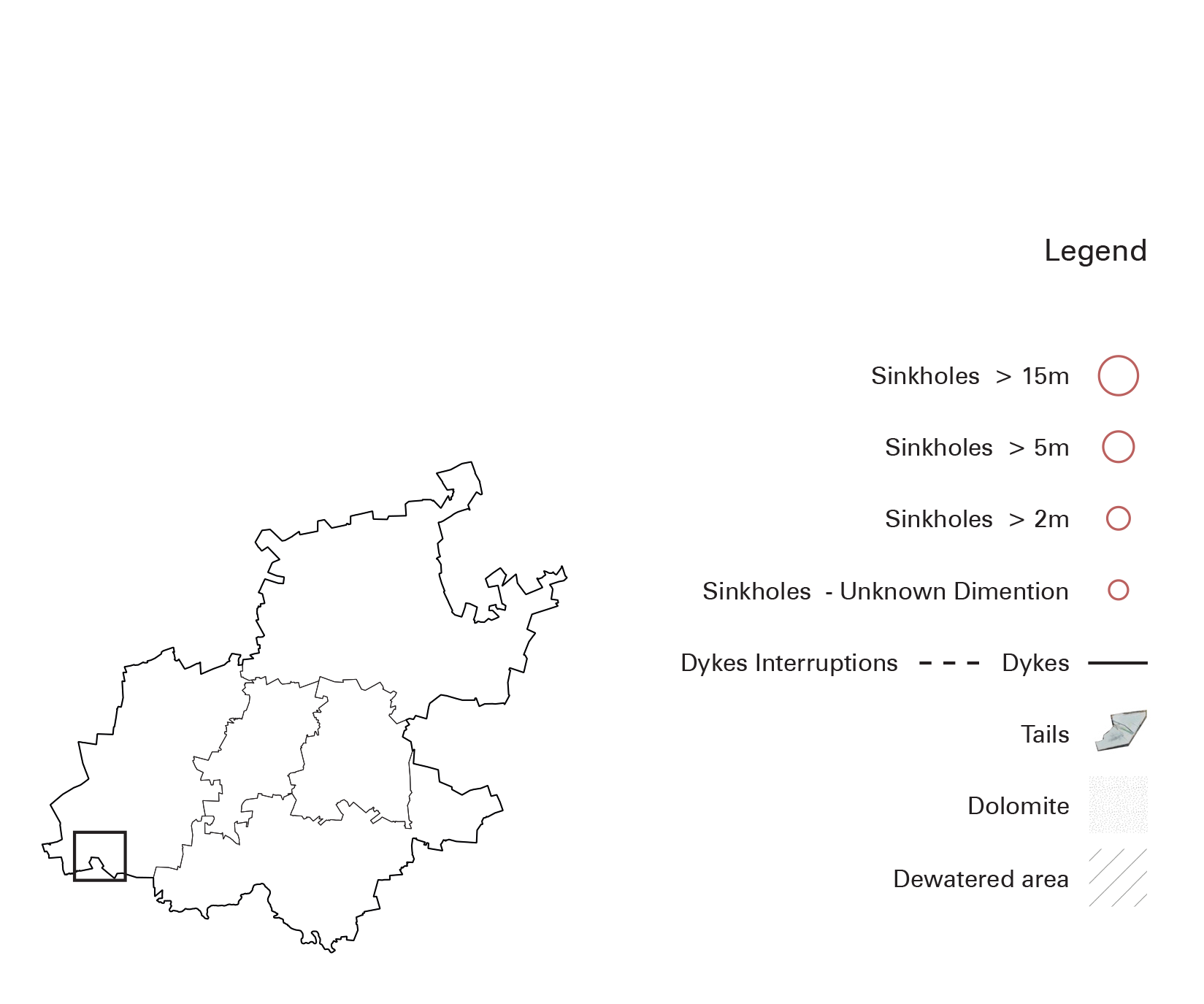

On the bottom a long section portrays how the natural inclination generates pollution, draining water from the tailings to the river. Moreover, the topography makes the dust particles spread by the wind in a large portion of the region. A cross-section shows the mechanism of de-watering. The water is trapped between underground natural dykes and is pumped out from the highest to the lowest sector. One de-watered the Dolomite stone – a porous sedimentary carbonate rock, in this region characterized by underground caves – triggers phenomena of subsidence and sinkholes, as described in the diagram
